Robust lane markings detection and road geometry computation.



This web page contains the results in video form of the paper

Robust lane markings detection and road geometry computation

A. López1, J. Serrat1, C. Cañero1, F. Lumbreras1 and T. Graf 2
1Computer Vision Center and Compt. Science Dept., Universitat Autònoma de Barcelona, 08193 Cerdanyola, Spain
2 Electronics Research, Volkswagen AG, Wolfsburg, Germany
International Journal of Automotive Technology, Vol. 11, No. 3, 2010, pp. 395-407, DOI: 10.1007/s12239-010-0049-6.


Note : all videos haave been compressed with the DivX 5.1.2 codec.

Abstract

Detection of lane markings based on a camera sensor can be a low cost solution to lane departure and curve over speed warning. A number of methods and implementations have been reported in the literature. However, reliable detection is still an issue due to cast shadows, wearied and occluded markings, variable ambient lighting conditions etc.
We focus on increasing the reliability of detection in two ways. Firstly, we employ a different image feature other than the commonly used edges: ridges, which we claim is better suited to this problem. Secondly, we have adapted RANSAC, a generic robust estimation method, to fit a parametric model of a pair or lane lines to the image features, based on both ridgeness and ridge orientation. In addition this fitting is performed for the left and right lane lines simultaneously, thus enforcing a consistent result. Four measures of interest with regard several driver assistance applications are directly computed from the fitted parametric model at each frame: vehicle yaw angle and lateral offset with regard the lane medial axis, and lane width and curvature.
We have qualitatively assessed our method in video sequences captured on several road types and under very different lighting conditions. Also, we have quantitatively assessed it on synthetic but realistic video sequences for which road geometry and vehicle trajectory ground truth are known.


Contents
  1. Synthetic sequence and source code
  2. Real sequences
    1. CCD
    2. CMOS
    3. Consumer digital videocamera
  3. Temporal coherence experiment

1. Synthetic sequence
The non-ideal camera sequence simulates, in addition to changes in road slope, curvature, contrast and vehicle direction, the change in camera pitch due to uneven road, brake actioning and acceleration. Below, we show the original sequence and, superimposed, the detected lane lines. In red, ridge points considered outliers, in yellow, inliers.

non-ideal camera
Original 'non-ideal camera' sequence

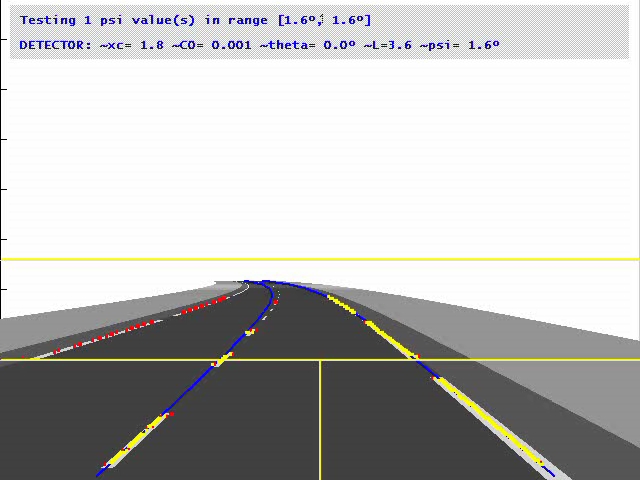

Lane lines detection, 1 horizon lines tried

Lane lines detection, 7 horizon lines tried

Matlab source code for generating synthetic sequences can be downloaded here. This original sequence and all the parameters to generate it, here. If you find it useful, please cite our paper (reference above).


2.
Real sequences
Here we show the lane lines dection for sequences containing specially challenging situations like drastic contrast changes, dense traffic, occlusions of lane markings, night time, reflexions, etc. Real sequences were captured with three cameras built on different sensors :

Camera Sensor Lens
CCD ICX084 CCD 1/3" 8 bits per pixel, Bayer pattern. 6 mm
CMOS LM9618 CMOS 1/3", 12 bits per pixel (experimental camera) 6 mm
Videocamera   Consumer digital miniDV videocamera, Bayer pattern 35mm


a) CCD camera

CCD_DayTime_3
Highway straight segment, lane change and tunnel
CCD_DayTime_5
Highway, tunnel
CCD_DayTime_2
Two roundabouts, tree shadows


b) CMOS camera

Day time
CMOS_DayTime_1
Highway
CMOS_DayTime_3
Highway, curves, lane changes, lane exit
CMOS_DayTime_4
Highway, straight segment, occlusions (truck)
CMOS_DayTime_5
Highway, curves, lane changes, shadows

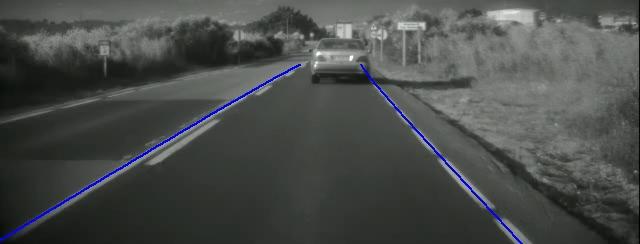

CMOS_DayTime_6
Free road, oncoming traffic, car and tree shadows


Night time

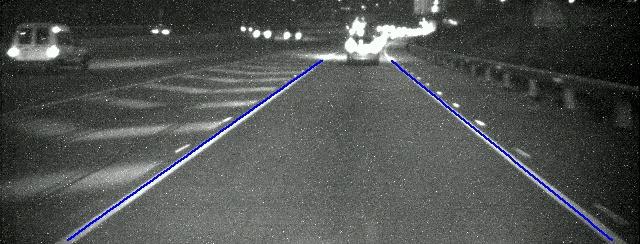

CMOS_NightTime_1
Highway, dense traffic
CMOS_NightTime_2
Highway, dense traffic
CMOS_NightTime_3
Free road, no traffic
CMOS_NightTime_4
Free road,  some oncoming vehicle




c) Consumer digital videocamera

Videocamera_DayTime_1
Highway, gentle curves
Videocamera_DayTime_2
Highway, straight segment

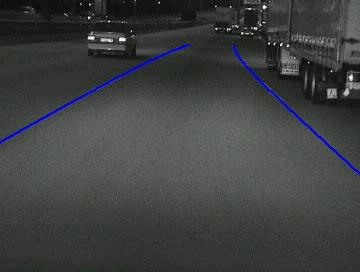

Videocamera_NightTime_1
Highway, night time



d)
Preliminary temporal coherence experiment

CMOS_DayTime_PreliminaryTemporalCoherence
CMOS camera, highway. Red region is the lane line search space


Last update: September 4, 2009
